Ramsey RSG1000B rf signal generator 100KHZ to 1.1GHZ


Poster: 491706814@iowa-industrial.com

Ramsey RSG1000B rf signal generator 100KHZ to 1.1GHZ

Professional Quality At AN Experimenter's Price!
Factory Assembled & Tested To Certified Specifications
The RSG1000B has been designed to fill the need for a basic RF signal generator for design, development, and testing. We ve included the performance and features you need every day, and priced it to let you equip every bench in your shop or classroom.
The broadband frequency range covers 100kHz all the way to 1.1GHz with 10Hz continuous tuning! 90 set-up memories are provided for custom user operations and saved settings to speed up your frequent tasks.
The RSG1000B features an RS232 control interface. This interface supports polled readings plus download and upload of all setup memories.
Frequency synthesis is referenced to an internal 0.1ppm 50MHz timebase. This timebase is STANDARD equipment with the RSG1000B!
At 12" x 6" x 12" and 11 lbs., the RSG1000B it is suitable not only for bench use but for mobile applications and to use as a field service tool or local oscillator.

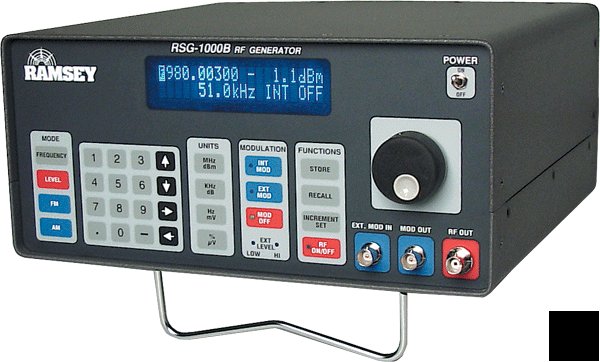

The display is a bright blue vacuum fluorescent display you can read from across the room, and displays all operating parameters. A numeric membrane keypad enables direct entry of all values. All functions are accessible without using a shift or second function key for real ease of use. We have also incorporated a smart knob which has analog feel, but is intelligently enabled when entering or changing parameters in any field.
SPECIFICATIONS (At <= 0dbm output level)
10 Hz continuous tuning, 100 Hz above 1000 MHz
5 Hz typical, 0.3 to 3 KHz detection BW
-60dBc (>10 KHz from carrier) 0.3 to 3 KHz detection BW
-130 to +10 dBm (50 Ohms); Resolution: 0.1 dB
1 ┬ÁV (2 turn loop, 1 inch diameter, 1 inch distance)
99.9 KHz; except 250 to 500 MHz
Internal 1 KHz derived from reference.
Level LEDs to indicate correct 1 Volt p-p input level
Front Panel Sealed membrane with audio acknowledgment
Two line, green vacuum fluorescent display
RAMSEY ELECTRONICS...For Over Three Decades!
We delve into circuit theory covering how and why it works, all in a fun and easy to understand format. That's something we've become famous for! And more than 3 decades later, there are thousands and thousands of hobbyists young and old that have enjoyed that experience. For the professional, we are a leading provider of RF shielded test enclosures, communications test equipment, broadcast FM, and professional audio equipment.
For over a decade, Ramsey Electronics has been a leader in Communications Test Equipment. Our COM3 Communications Service Monitor set records as the most affordable and feature-rich Service Monitor. With thousands and thousands sold, its successor, our COM3010 is on the way to the same record breaking history! Our patented RF Shielded Test Enclosures have been the leading RF-Free Isolation test chambers, used by the top communications and wireless equipment manufacturers through the world.
The Ramsey PX series FM Stereo broadcast transmitter became one of the first, and most reliable FCC Certified LPFM transmitter. Easy to hook-up, the PX has put many, many LPFM stations on the air without the hassle! Expanding the LPFM market, our exclusive "Radio Station In A Box" packages get stations on-the-air quick, providing all the audio production equipment and studio interfaces for a rapid deployment literally within minutes! There are hundreds of Stations-In-A-Box deployed throughout the world, providing everything from entertainment to critical emergency disaster preparedness information to local communities. As a natural extension to to the FM Broadcast market, our Pro Audio division provides the latest professional audio products to support the broadcaster, musician, or any serious studio application.
At Ramsey Electronics your satisfaction is guaranteed! Test Equipment carries a full 1-year warranty. All assembled kits carry a full 1-year warranty. Kits carry a 90-day warranty on parts. You may examine any kit for 10 days, and return it (unassembled!) for a full refund!
If you have any questions before you place your order, or have any questions about an order that you have already placed, feel free to visit us at ramseyelectronics or call us, toll free, (***)-446-2295. And make sure to get our famous Ramsey Catalog!
